Can You Weld Rebar? Discover Welding Techniques, Types, and Tips!

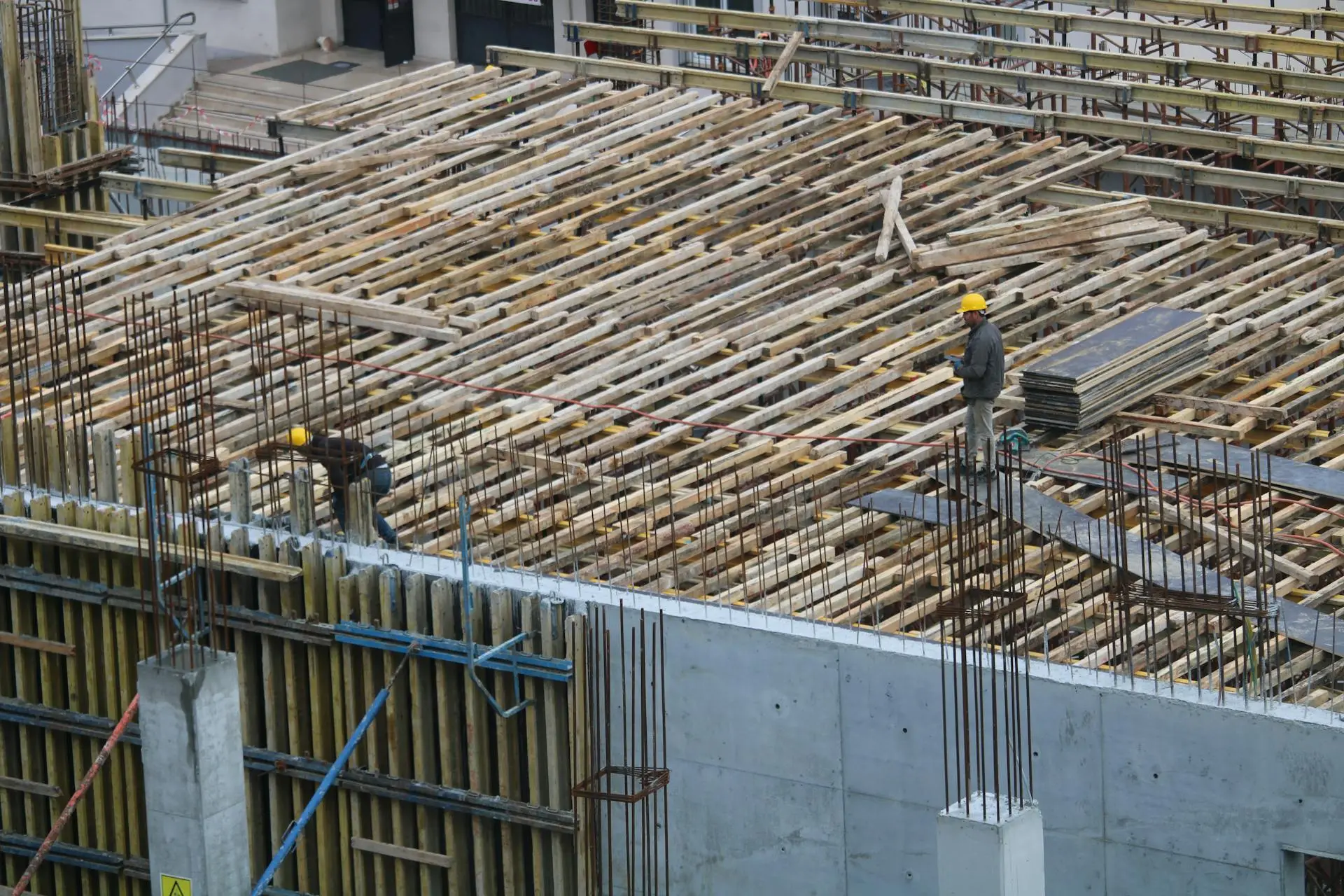

Rebar, short for reinforcement bar, is a strong steel bar used to strengthen concrete. It’s key in building structures like bridges and buildings, keeping them safe and durable.

You may ask, can you weld rebar? Well, that’s a big topic. It’s crucial to know this because proper welding techniques can improve the strength of your project, and I’ve seen firsthand how it can save time on a job site.

In this guide on welding rebar, we’ll explore rebar types and their weldability, essential prerequisites for starting, steps to weld rebar, necessary precautions, various welding methods, influential factors, common issues you may face, aftercare tips, and the key benefits of rebar. We’ll also touch on when to consider alternatives and share some frequently asked questions. Get ready to get your hands dirty!

Can You Weld Rebar?

Yes, you can weld rebar, but it isn’t always easy. The grade and type of rebar matter, as not all are suitable for welding. The best method? Use a MIG welder and ensure proper prep for a strong bond.

What is Rebar?

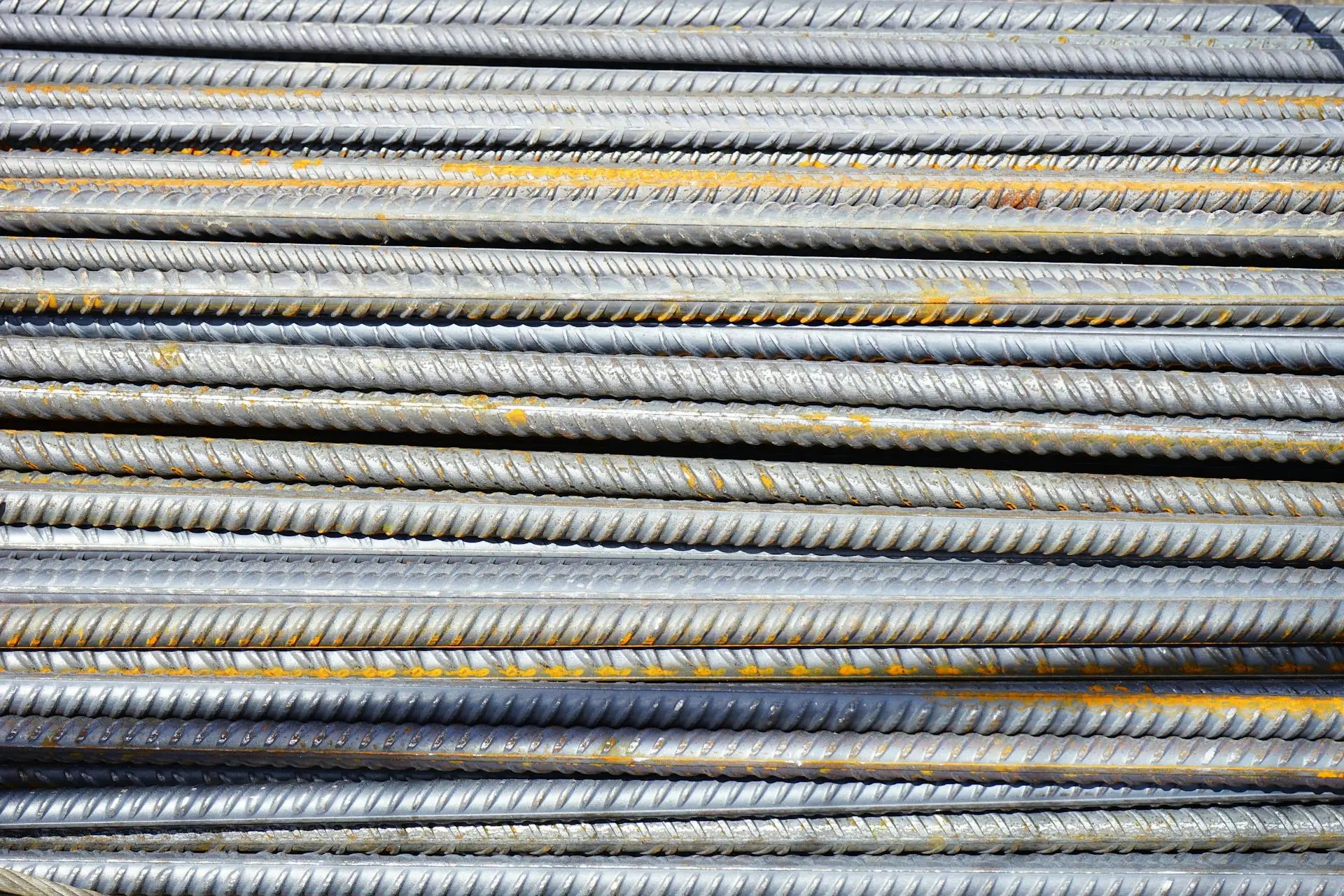

Rebar, short for reinforcing bar, is a steel bar used to strengthen concrete. It’s typically made from carbon steel and comes in various diameters, ranging from 6 mm (0.24 In) to 32 mm (1.25 In). Rebar is often marked with numbers indicating its yield strength. For example, Grade 60 rebar has a yield strength of 420 MPa (60,000 Psi). This strength helps concrete structures withstand heavy loads.

Can you weld rebar? I’ve worked on various projects and seen rebar welded successfully. This flexibility in design is interesting, but it’s not straightforward. Factors like the type of rebar and the welding method are crucial for ensuring a strong bond.

A friend of mine used rebar to create a robust foundation for his garage. He wondered if he should weld the rebar instead of just tying it. While discussing it, we asked, “Can you weld rebar together?” It turns out that welding saves time and can be effective with the right method. If done incorrectly, though, it might weaken the structure.

Types Of Rebar and Their Weldability

What are the types of rebar and their weldability?

• Epoxy-coated Rebar

  Epoxy-coated rebar is steel coated with epoxy resin for rust protection. You can’t weld this type because the coating burns off. To join pieces, first remove the coating at the weld ends, then use techniques like stick or MIG welding to create a strong weld. Be sure to re-coat exposed areas afterward.

• Galvanized Rebar

  Galvanized rebar is coated in zinc to resist corrosion. You can weld it, but you must be careful. Grind off the zinc at the weld area before welding. Always check for fumes—zinc can be toxic.

• Stainless Steel Rebar

  Stainless steel rebar offers excellent corrosion resistance and is easy to weld without special preparation. You can use stick or MIG welding, and choose the right filler metal that matches the stainless steel grade.

• Carbon Steel Rebar

  Carbon steel rebar is common in construction and can be welded with ease. Clean the surfaces thoroughly and use either stick or MIG methods. Preheating may help avoid cracks in thicker sections.

• Fiberglass Rebar

  Fiberglass rebar is non-metallic and ideal for corrosive environments. However, it can’t be welded. To join sections, use adhesives or mechanical means, as welding won’t work.

So far we covered the various types of rebar and their welding capabilities. Next, let’s look at the necessary prerequisites to begin.

Essential Prerequisites to Get Started

What do you need to begin welding rebar?

• Rebar Welding Rod: Use a high-quality rod like E7018 or E6013 for strong, durable welds on rebar.
• MIG Welding Machine: Get a MIG machine, such as the Hobart Handler 140, which offers the necessary heat control for effective welding.
• Cooling Fluid or Water Sprayer: Have cooling fluid or a sprayer ready to prevent warping post-welding. Cooling your joint is essential to maintain its integrity.
• Welding Scale or Calculator: Use a program like WeldCalc for precise calculations of metal thickness and welding time. It’s crucial to apply the right amperage.

We’ve wrapped up the essential prerequisites to get started. Next up, we’ll look at the steps to weld rebar.

Steps to Weld Rebar

Now, we’ll cover the steps to weld rebar successfully. Follow these steps carefully to ensure strong, effective joints.

1. Prepare the Work Area

   First, you need a clean, stable work area. Ensure the surface is flat and free of debris. This prevents accidents and ensures precision. A recommended size is about 2 m x 2 m (6 Ft X 6 Ft) to comfortably accommodate your materials.

   Check for proper ventilation, especially if you’re using methods like MIG. Gases from welding can be harmful. Having a fan or open window nearby helps. Trust me, you’ll breathe easier and work more efficiently!

2. Clean the Rebar

   Cleaning the rebar is crucial for quality welds. Use a wire brush or grinder to remove rust, dirt, and oil. Aim for a surface roughness of 75 to 100 micrometers for better fusion during welding.

   Don’t skip this step! Contaminants can compromise weld strength. I’ve seen weak welds due to inadequate cleaning. Keep it spotless for strong joints!

3. Select Appropriate Welding Method

   Selecting the right welding method depends on your tasks. For rebar, both Stick and MIG welding work well. Stick welding uses electrodes, while MIG uses a wire feed. Choose based on your comfort level and what you have available.

   If you’re welding grade 60 rebar, aim for an amperage between 120 to 140 A for Stick welding. In MIG, keep your wire feed between 3.5 and 5 m/min (11 and 16 Ft/min) for optimal results. Knowing your materials’ specifications saves frustration later!

4. Execute the Welding Process

   Now it’s time to weld! Maintain a speed of about 10 to 18 cm/min (4 to 7 In/min) while moving the electrode or wire. This ensures you melt the metal without burning through. Accuracy is vital for a strong weld.

   After you finish, don’t rush! Pause to cool the joint before touching it. Rapid cooling can lead to cracks. Remember, patience is key to a solid weld!

We covered the steps to weld rebar. Next, we will cover essential precautions.

Precautions

Let’s cover key safety measures for welding rebar.

• Wear Protective Gear: Protective gear shields you from sparks and UV rays. I recommend a welding helmet like the 3M Speedglas.
• Ventilation: Ensure proper airflow to avoid harmful fumes. Use fume extractors like the Miller Super Vortex for best results.
• Inspect Equipment: Regularly check your welding tools to prevent malfunctions. Maintenance can reduce accidents by up to 50%.
• Clearly Mark Work Area: A well-marked area prevents trips and accidents. Use caution tape to keep onlookers safe.

These precautions are crucial for your safety while welding.

We covered safety measures and precautions here. Next, we will cover the different types of welding for rebar.

Types Of Welding for Rebar

Let’s discuss the types of welding for rebar: MIG Welding, TIG Welding, Stick Welding, Flux-Cored Arc Welding, and Submerged Arc Welding.

• MIG Welding

  MIG welding (Metal Inert Gas Welding) uses a continuous wire feed. This fast method is suitable for welding rebar. You can adjust the voltage and wire feed speed, making it versatile for various rebar thicknesses.

• TIG Welding

  TIG welding (Tungsten Inert Gas Welding) provides high-quality welds but is slower than MIG. It’s best for thin rebar, with an amperage range of 100-300 A, allowing for precise control.

• Stick Welding

  Stick welding (Shielded Metal Arc Welding, SMAW) is common for outdoor jobs. It’s easy to use on rusted or dirty rebar since the flux in the rod provides a protective shield. A typical voltage range is 20-40 V.

• Flux-cored Arc Welding

  Flux-Cored Arc Welding (FCAW) is similar to MIG but uses a tubular wire filled with flux. It’s an excellent option for outdoor rebar welding, as it’s unaffected by wind and handles thicker materials well.

• Submerged Arc Welding

  Submerged Arc Welding (SAW) produces high-quality welds with minimal spatter. It works well for large projects and can join multiple bars simultaneously. This method typically uses a wire diameter of 0.8-3.2 mm (0.03-0.13 Inches).

Factors Influencing Rebar Welding

What factors affect rebar welding?

• Type Of Rebar Used

  The type of rebar significantly impacts the welding process. For example, Grade 60 rebar, with a yield strength of 60,000 psi (About 414 Mpa), can be welded under certain conditions, while some grades may not be suitable at all.

• Welding Technique Applied

  MIG welding and stick welding are common methods for joining rebar. Choosing the right technique affects penetration and heat input, which are crucial for strong welds.

• Environmental Conditions

  Welding outdoors in wind or rain can ruin your welds. Temperature and moisture significantly influence the final product’s outcome.

• Weld Preparation Quality

  Cleanliness matters. Rust or dirt on rebar weakens the joint. Proper preparation enhances bond strength, ensuring a durable connection.

• Equipment Settings

  Correct machine settings, such as voltage and speed, dramatically affect weld quality. Misconfigured equipment can lead to weak joints or burn-throughs.

Common Issues and Troubleshooting

Let’s examine specific technical problems when welding rebar.

• Insufficient Fusion

  With rebar, insufficient fusion means the welds didn’t bond. To identify this issue, check for raised surfaces. Fix it by ensuring a proper electrode angle of about 45 degrees and adjusting the heat for better penetration.

• Cracking in Welds

  Cracking in rebar can occur due to rapid cooling or improper materials. Preheat rebar to 150°F (65°C) to minimize cracks. If cracks appear, grind out the affected areas and re-weld with the correct heat settings.

• Inconsistent Weld Bead

  If the weld bead on rebar looks uneven, inconsistent travel speed may be a factor. Evaluate your speed and maintain a steady hand. Make small adjustments to create a smoother bead.

• Contamination Issues

  Rebar must remain clean. Slag or rust indicates contamination. Before welding, clean it with a wire brush or grinder. Ensure the environment is free from moisture and oils to avoid defective welds.

• Heat-affected Zone Problems

  The heat-affected zone in rebar is sensitive. Discoloration or weakened areas signal excessive heat exposure. Prevent warping by adjusting heat settings and using multiple passes for thicker pieces.

Aftercare, Inspection, and Advanced Tips for Rebar Welding

Here’s expert advice on aftercare, inspection, and advanced rebar welding techniques.

Aftercare Tips

After rebar welding, cool the joints slowly to prevent cracking. Aim for a post-weld temperature drop of about 400°F (204°C) over 30 minutes. Clean off slag and spatter immediately with a 60-grit grindstone to enhance metal adhesion for subsequent coatings.

Inspection Techniques

Inspect welded joints for undercut and overburn using an ultrasonic testing gauge, targeting less than 0.020 in (0.51 Mm) on each side. Use a bend test kit to check weld flexibility. I’ve used the Triman BEND Tester for accurate bending assessment with excellent results.

Expert Tips

If you’ve used a welding machine before, focus on controlling the heat input. Maintain a range of 0.5 kJ/mm to 2 kJ/mm for optimal deposition and fusion. Use a 15-degree travel angle for your torch to ensure smooth weld puddle flow and better penetration. Preheat edges to 150°F (65°C) in cold conditions to reduce stress cracking.

Understanding Rebar Welding Techniques and Standards

Let’s dive into the specifics of rebar welding techniques and industry standards.

Welding Standards for Rebar

Various organizations set standards for rebar welding. Here are the most widely recognized:

Standard	Description	Organization
AWS D1.4	Codes for welding and repairing reinforcing steel	American Welding Society (AWS)
ASTM A615	Specifications for deformed and plain carbon-steel bars	American Society for Testing and Materials (ASTM)
BS 4449	British Standard for reinforcing steel	British Standards Institution (BSI)

Effective Techniques for Welding Rebar

Using the right technique is crucial for successful welding. Here are effective methods:

• Preheating: Preheat the rebar, especially in colder weather, to at least 150°F (65°C) to prevent cracking.
• Welding Sequence: Use a staggered welding pattern to minimize distortion and heat buildup.
• Heat Control: Monitor and adjust amperage; aim for a consistent range of 120-140 A for stick welding on grade 60 rebar.
• Interpass Temperature: Keep the interpass temperature below 400°F (204°C) to maintain the rebar’s mechanical properties.

Common Testing Methods

To ensure weld quality, various tests can be performed:

• Bend Test: Bend the welded joint to check for cracks; a 180-degree bend is standard.
• Tensile Test: Measure the tensile strength of the weld; it should match or exceed the rebar’s specifications.
• Visual Inspection: Inspect for cracks, incomplete fusion, and proper bead appearance without using magnification.

Key Benefits

The main advantage of welding rebar is improved structural integrity. A friend used it for a large foundation project, and the results were astounding.

Additionally, you can save time and labor costs, achieve a consistent bond, and make repairs easier with less need for tying and bending. This method offers a stronger connection than traditional tying, allowing for better load distribution.

Applications Across Different Fields

Rebar welding is highly useful in construction with various applications, such as:

• Bridge Construction: Welded rebar is essential for strengthening bridge structures. It enhances load-bearing capacity and extends lifespan.
• High-Rise Buildings: In skyscraper projects, welding rebar creates rigid frameworks that improve stability against winds and earthquakes. It’s widely used for these safety benefits.
• Foundations: Rebar welding is important for ensuring solid foundation integrity in large commercial buildings. This technique helps prevent cracks and structural failures.
• Retaining Walls: Welded rebar provides additional support to retaining walls, effectively managing soil pressure. This application is common where soil erosion is a risk.

When to Try a Different Approach

There are several solid alternatives to get similar results. For instance, tying rebar using #18 tying wire, available from brands like Grabber, is often preferred for its simplicity and reliability. I’ve learned through hands-on experience that mechanical connections, like rebar couplers from companies such as Simpson Strong-Tie, can also ensure a strong bond when welding isn’t practical.

If you’re concerned about the integrity of the weld, consider epoxy-coated rebar. This product provides corrosion resistance and strength without needing a weld. It’s crucial to assess your project’s needs first—sometimes, these methods save time and hassle while still providing durability.

Frequently Asked Questions (FAQs)

Now let us look at some questions I typically get asked.

What Happens if You Weld Rebar?

When you weld rebar, you risk weak joints and potential failure. Rebar typically has a carbon content that can lead to brittleness if overheated, which reduces its tensile strength. In fact, welding can compromise the integrity of the structure where the rebar is used.

Why Are Rebars Not Welded?

Rebars are not welded because welding decreases their strength. The heat from welding can change rebar’s properties, making it too brittle. Engineers prefer mechanical connections like tying for better overall structural performance and safety.

What Type Of Rebar Can Be Welded?

Some types of rebar can be welded, particularly low-carbon steel rebar. However, it’s not common due to potential strength loss. For the best results, use grade 40 or 60 rebar, but always consult specific guidelines for your project.

Is It Better to Weld or Tie Rebar?

Tying rebar is generally better than welding for most projects. Tying provides a reliable connection and maintains rebar’s strength. In fact, using ties avoids the risks related to heat distortion and weak joints associated with welding.

Can You MIG Weld Rebar?

Yes, you can MIG weld rebar, but it’s not always the best practice. MIG welding can introduce heat that weakens the rebar. If you choose this method, monitor your settings closely to prevent overheating.

Can You Weld Rebar Together?

Yes, you can weld rebar together, but it’s not advisable in structural applications. Welded joints may fail under load due to stress concentrations. It’s safer to use mechanical methods for connecting rebar.

Conclusion

We’ve reached the end, and I appreciate you sticking around. We covered what rebar is, its types and weldability, essential prerequisites for welding, steps to do it, as well as safety precautions. I also went over types of welding for rebar, factors that influence the welding process, common issues, and troubleshooting, plus aftercare tips, benefits, applications, and when to consider alternatives.

So, can you weld rebar? In short, yes, you can—but it depends on the type of rebar and the appropriate method, such as MIG welding or other techniques. If you need more guidance, don’t hesitate to reach out. Remember, knowing how to weld rebar can make a huge difference in your projects.

References

• Kou, S. (2003). Welding Metallurgy (2nd ed.). Hoboken, NJ: Wiley.
